Champion Spin-On Oil Filter CH48110-1

Champion CH48110-1 Spin-On Oil Filter uses advanced filter media to trap harmful particles, including metal chips from engine wear. Its multi-layered design prevents fibers from clogging the engine oil passages, protecting the engine's bearings.

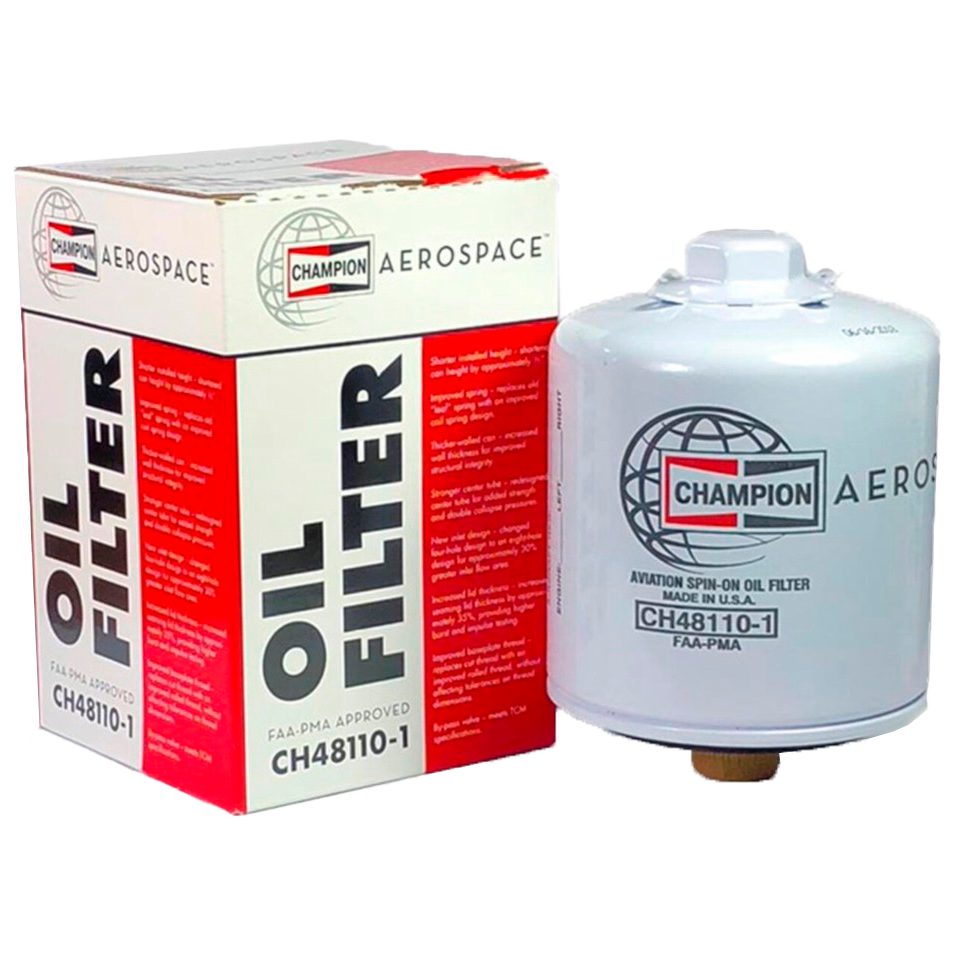

Tests show it captures more dirt and particles than other filters. CH48110-1 filter comes in an individual box with a clearly displayed part number and include an installation gasket. Models with male threaded studs have thread protectors to prevent damage.

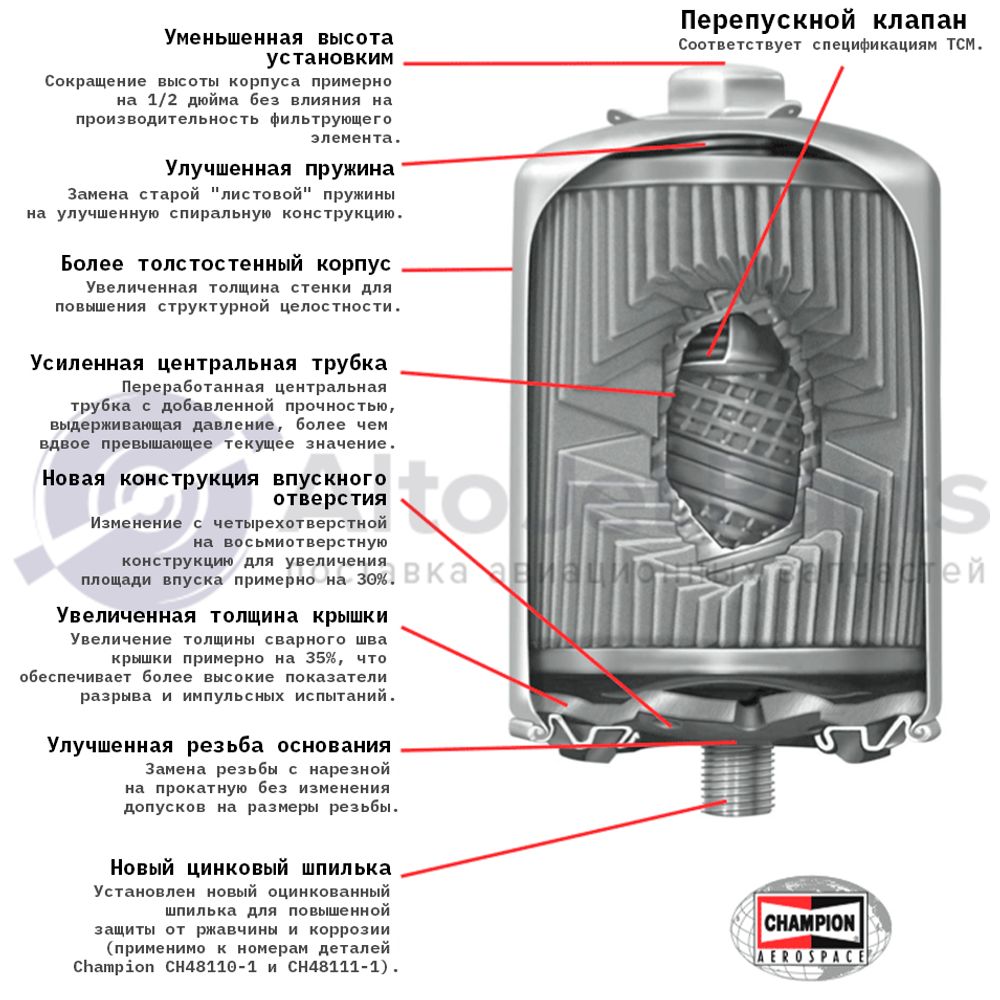

FEATURES

• Silicone Impregnated Filter Gasket for future removal of the filter, reducing maintenance time and effort

• Heavy, corrugated steel center tube supports each pleat of the filter element, offering a higher collapse-pressure rating—twice that of similar filters—ensuring durability and reliability

• By-pass valve – meets TCM specifications BENEFITS • Maximum full-flow design enhances oil filtration efficiency for each hour of engine operation, without interference from the center-bolt oil filter assembly

• Modern spin-on oil filters incorporate an anti-drain back valve mechanism and internal bypass valve (48108-1/48109-1), all sealed in a disposable housing for convenience and improved engine protection.

SPECIFICATIONS

• Length: 4.48 Inches (11.4 cm)

• Diameter: 3.71 Inches (9.4 cm)

• Thread: 3/4-16-UNF-2A

• Dry Weight: 1.38lbs. (0.63kg)

• Hex. Height: 0.43 Inches (1.09 cm)

• Hex. Width: 1.00 Inches (2.54 cm)
