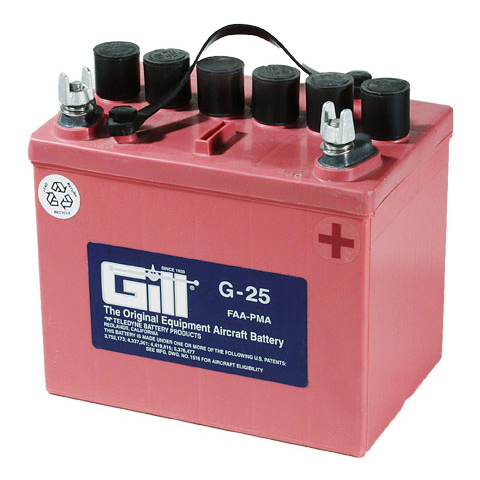

G25 Gill Battery Dry Aircraft Batteries are designed to provide reliable and safe performance. These batteries are spill-proof and come with fully charged and dry electrodes. They feature an enhanced case-cover seal that offers better protection.
G25 Dry Aircraft Batteries deliver strong power, recharge quickly, and have a long lifespan. The cell construction has been improved for better power delivery and charge acceptance.
FEATURES
• Sealed, Non-Spillable
• Improved case-cover seal
• Heavy-duty internal post
BENEFITS
• Provides optimal power, fast recharge and superior life
• Through-the-partition intercell welding
• Redesigned cell construction to provide better power delivery and charge acceptance
SPECIFICATIONS
• Voltage: 12 Volts
• Capacity: 18 Ah at the 1 Hour Rate
• Emergency Capacity: 30 Amps 30 Minute
• Weight: 21lbs
• Electrolyte: Electrolyte: 2 Qts./1.285 s.g
• 225 CCA at 0° F for 60 Seconds
TECHNICAL INFORMATION
• FAA/PMA Approved
NOTE
• Battery life begins when the electrolyte is added
• It is recommended that these batteries be stored in cool, dry areas, as high humidity and temperature will only serve to discharge the negative plates, requiring considerable conditioning if the oxidation is severe.
AIRCRAFT ELIGIBILITY
Manufacturer Model/Series
Aerostar PA-60-600, PA-60-601, PA-60-601P, PA-60-602P, PA-60-700P
American Champion 7ACA, 7ECA, 7GCBC
Beechcraft 19A, B19, 23, A23, A23A, B23, C23, A24, A24R, B24R, C24R, E33, E33A, E33C, F33, 33, 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, D55, D55A, E55, E55A, 58, 58A, 58P, 58TC, G58, 77, 95, B95, B95A, D95A, E95, 95-55, 95-A55, 95-B55, 95-C55, C-55A
Cessna 120, 140, 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A150K, A150L, A150M, 170, 172, 172B, 172C, 172D, 172E, 172F, (USAF T-41A), 172G, 172H, (USAF T-41A), 172I, 172K, 172L, 172M, 172N, F172D, F172E, F172F, F172G, F172H, F172K, F172L, F172M, F172N, 175, 175B, 175C, P172D, 177, 1277A, 177B, 188, 188A, 188B, T188C, 310, 310B, 310C, 310D, 310F, 310G, 310H, E310H, 310I, 310J, 310J-1, E310J, 310K, 310P, 310Q, 320, 340
Commander 112, 112TC, 112B, 112TCA
Piper Aircraft, Inc. PA-11, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-23-235, PA-23-250, PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-161, PA-28-180, PA-28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28RT-201, PA-28RT-201T, PA-32-260, PA-32-300, PA-32R-300, PA-32RT-300, PA-32RT-300T, PA-36-285, PA-36-300, PA-36-375, PA-38-112
SOCATA, S.A Grumman GA-7
True Flight Holdings LLC AA-1, AA-1A, AA-1B, AA-1C, AA-5, AA-5A, AA-5B
