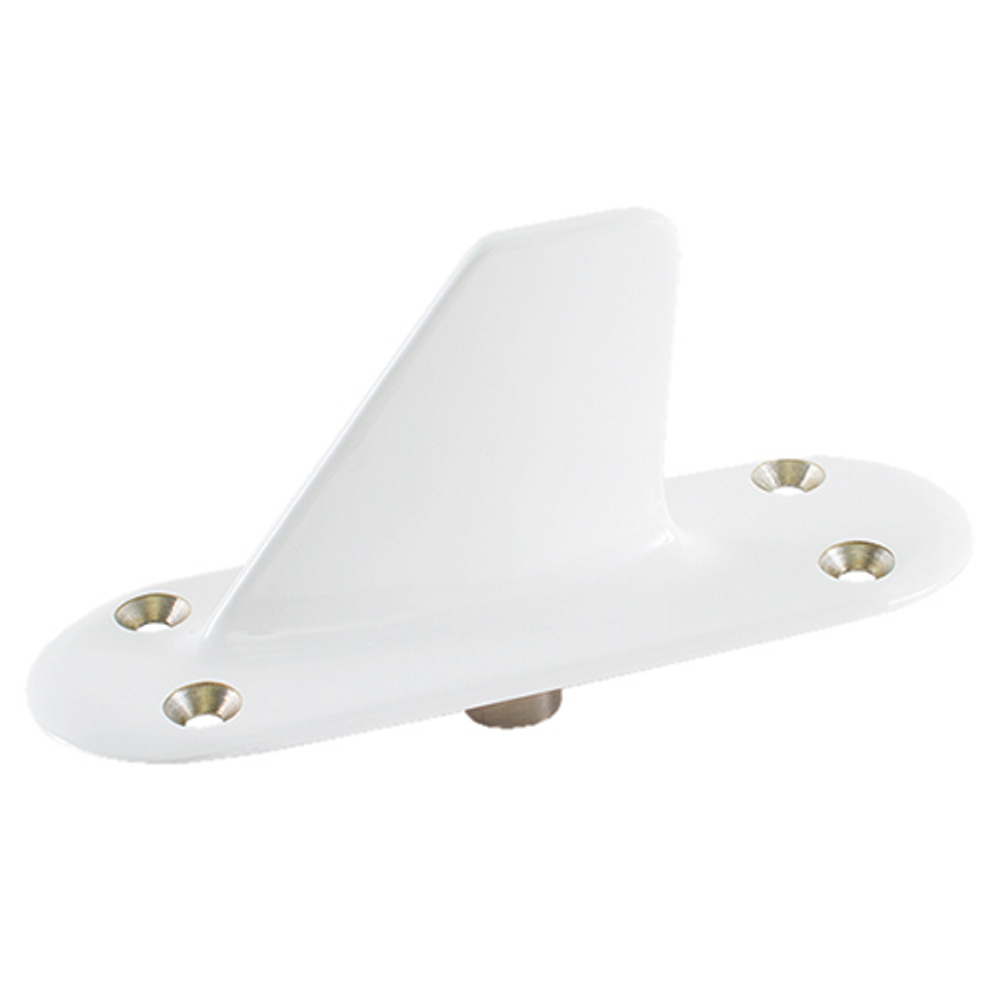

DMNI50-2-2 L3HARRIS Antenna

The NI50 is an airborne, air-transport, regional, navigation antenna. Reduced maintenance costs are achieved through the use of this low profile, all-metal blade as a result of its unequalled mechanical strength and built-in reliability. The NI50 is currently in use on business and commercial.

They have clear advantages over other current designs including extremely high-side load strength guards against breakage by ground handling gear. Completely sealed construction prevents failure from moisture intrusion. Lightning protection circuits prevent damage to the antenna and safeguard electronic equipment.

FEATURES

• Low profile all-metal blade

• Direct current grounded design

• Interchangeable with most L-band blade and flush mount antennas

• Multiple color and connector configurations available

TECHNICAL INFORMATION

• ARINC 521D, 532E Specified

• FAA TSO-C34C, TSO-C66A Specified

• MIL-T-5422E Qualified

SPECIFICATIONS

• Series: NI50

• Frequency Rating: 960 to 1220 MHz

• Power Rating: 3 kW, 100 W

• Mounting Type: Screw

• Finish: Glossy White

• Dimensions: 51/4 in L x 1-3/4 in W x 2.2 in H

• VSWR: 1.5:1, 1.7:1

• Polarization: Vertical

• Impedance: 50 Ohm

• Connector Type: C Male
