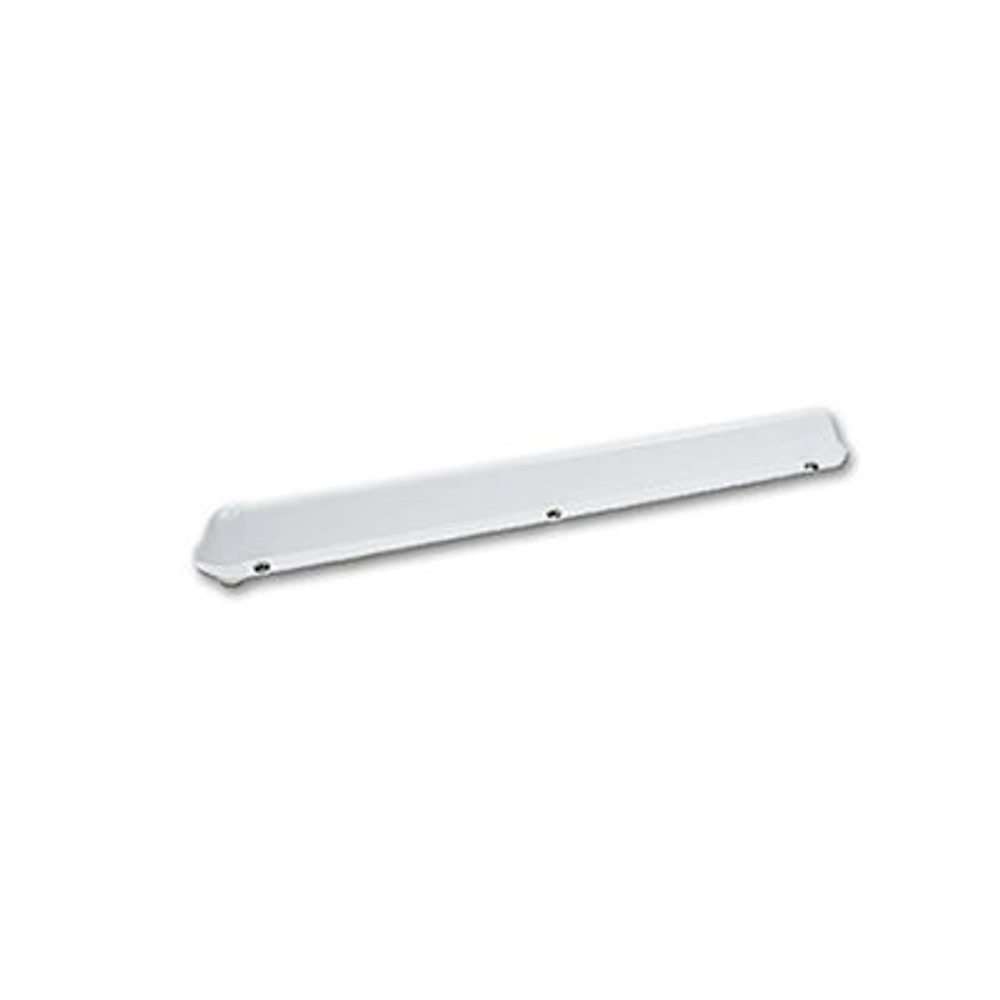

DMN27-3 L3HARRIS Antenna

The N27 is an airborne, air transport, regional or biz-jet, low profile, marker beacon antenna. The N27 Antennas are rugged, light-weight antennas for the reception of 75 MHz marker beacon signals.

These low-drag antennas are designed for simple external mounting and require no cutting of airframe structural members. The largest hole required in the skin is for the connector.

Moisture proofing is assured by the dielectric foam-filled, white polyester-fiberglass radomes. These Skydrol-resistant housings are fitted with metal leading edges for erosion protection. The N27 Antennas are designed to meet the performance specifications of antennas AT-134 and AT-536.

FEATURES

• Rugged, Skydrol resistant radome

• Metal leading edge

• Simplified mounting

TECHNICAL INFORMATION

• FAA TSO-C35C Compliant

• MIL-T-5422E Qualified

SPECIFICATIONS

• Series: N27

• Frequency Rating: 74.75 to 75.25 MHz

• Body Material: Polyester Fiberglass

• Finish: White

• Temperature Rating: -65 to 160 deg F

• Dimensions: 1-7/8 in W x 15 in H

• VSWR: <5:1

• Polarization: Horizontal

• Impedance: 50 Ohm

• Connector Type: BNC Female
