DMC63-2 L3HARRIS VHF Antenna

The C63 series is an airborne, whip, general aviation, communications antenna. The C63 series antennas are very high frequency (VHF) communication antennas designed for high mechanical strength. They come with machine-tapered aluminum alloy radiating elements.

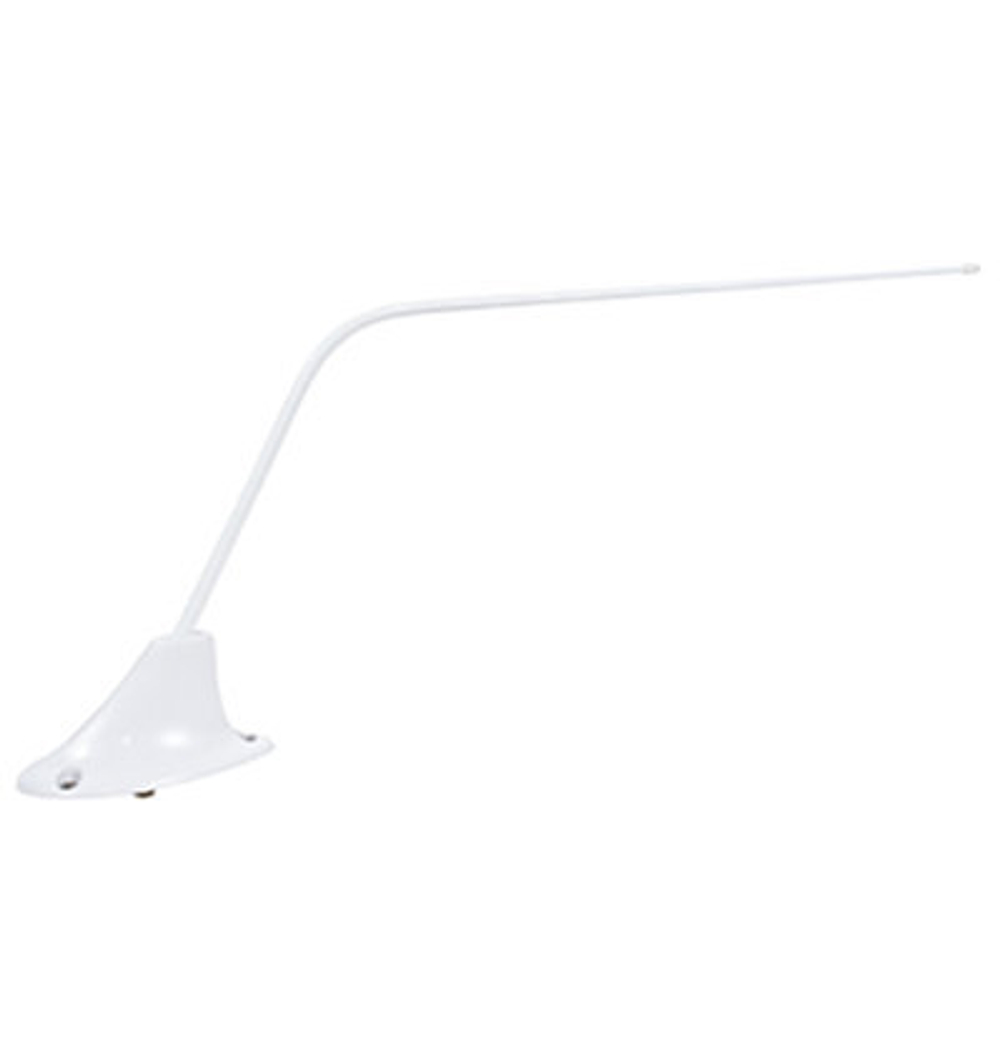

These vertically polarized antennas cover the frequency range of 118 to 137 or 138 to 174 MHz for both transmitting and receiving applications. The C63-1/A and C63-4/A are designed to be mounted on top of the fuselage. The C63-2 and C63-3/A are low profile bent back radiating element designs for mounting on the bottom of the fuselage.

They are well-suited for helicopter installations.

FEATURES

• High-strength tapered whips

• Low cost

• Light-weight

• Gasket and doubler plate provided

TECHNICAL INFORMATION

• FAA TSO Sea Level, Mach 0.5

SPECIFICATIONS

• Series: C63 • Dimensions: 8.1 in H

• Frequency Rating: 116 to 137 MHz

• VSWR: 3:1

• Impedance: 50 Ohm

• Pattern: Omni-Directional

• Power Rating: 50 W

• Gain: Equivalent to a Quarter Wave

• Polarization: Vertical

• Connector Type: BNC Female

• Material: Aluminum Alloy

• Color: Glossy White

• Product Weight: 49 lb
